On Sun, Jul 3, 2011 at 4:58 AM, Wei-Chih Chen <wcchen.tw
> Hello Everyone,
> I've setup several hosts with XCP 1.0 and manage it through XenCenter.
> Each host has two NICs (NIC1 and NIC2), connected to different physical
> switches (sw1 and sw2 respectively).
> After installation, Network1 and Network2 are automatically created for the
> two NICs.
> Now I am trying to setup VLAN.
> I create an "External Network" called NetworkVLAN, assigne a VLAN ID, and
> link it to NIC2.

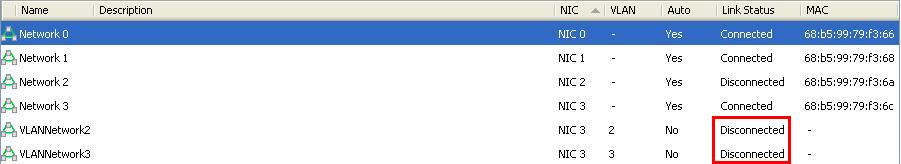

> On XenCenter, the Link Status of Network1 and Network2 are shown connected,
> but that of NetworkVLAN is disconnected.
> Does this mean packets of VMs attached to NetworkVLAN can not go outside to
> (i.e. These packets can only travel among VMs attached to NetworkVLAN?)
> Is there something wrong?
