Re: [Xen-users] [XCP] Disconnected link status of network

To: Todd Deshane <todd.deshane@xxxxxxx>
Subject: Re: [Xen-users] [XCP] Disconnected link status of network
From: Wei-Chih Chen <wcchen.tw@xxxxxxxxx>
Date: Thu, 7 Jul 2011 16:46:52 +0800
Cc: xen-users@xxxxxxxxxxxxxxxxxxx
Delivery-date: Thu, 07 Jul 2011 01:48:35 -0700
Dkim-signature: v=1; a=rsa-sha256; c=relaxed/relaxed; d=gmail.com; s=gamma; h=mime-version:in-reply-to:references:from:date:message-id:subject:to :cc:content-type; bh=n409wasHdSf45Zn0XBVrg8VW9HuajNxaCFozl4yCKHM=; b=ILIfOFBpp9IyR6iJAMCa+q7zVbwOOjyAuzLsZ9JR9hHvP5ZYskgkJTazDDPHcvc2r9 DJ6vhTeqzQ6H5/UFfZQ5mS7roacMTFzyw01hCJhL8fz9EhwsnZs+JqabuEysZ+ink8oL NvRxK9ZmOv7dAOOdgzGqYhRPPKOrPLw57sKgw=
Envelope-to: www-data@xxxxxxxxxxxxxxxxxxx
In-reply-to: <CANx=6oapmTmp0eFHaM3sER9QbufU7V27tsH=cDS9BkoC5cOOcw@xxxxxxxxxxxxxx>
List-help: <mailto:xen-users-request@lists.xensource.com?subject=help>
List-id: Xen user discussion <xen-users.lists.xensource.com>
List-post: <mailto:xen-users@lists.xensource.com>
List-subscribe: <http://lists.xensource.com/mailman/listinfo/xen-users>, <mailto:xen-users-request@lists.xensource.com?subject=subscribe>
List-unsubscribe: <http://lists.xensource.com/mailman/listinfo/xen-users>, <mailto:xen-users-request@lists.xensource.com?subject=unsubscribe>
References: <CANx=6ob0rEN2WOT9aexJTv_7uYwpGduUZdkfHgYTZ94QLdDXPw@xxxxxxxxxxxxxx> <CAMrPLW+A_DRAg=o92yO1Y6oiYGjYHsRbhRmN+3WUr=Z+bU8PKA@xxxxxxxxxxxxxx> <CANx=6oapmTmp0eFHaM3sER9QbufU7V27tsH=cDS9BkoC5cOOcw@xxxxxxxxxxxxxx>
Sender: xen-users-bounces@xxxxxxxxxxxxxxxxxxx
Hello Everyone,

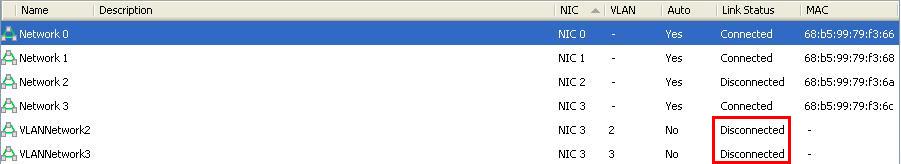

I take a screen shot.
network disconnected.jpg

Sorry for naming is different from previous discriptions.
It should be modified as follows:

4 NICs (NIC 0~3) correspond to 4 Networks (Network 0~3)
Only NIC 2 is not connected to a physical switch.
Network 0 is the management interface.
I create "External Network" called VLANNetwork2 & VLANNetwork3, assign VLAN ID 2 & 3 respectively, and link both to NIC3.
However, their Link Status is "Disconnected"
Does anyone know what is wrong?



On Mon, Jul 4, 2011 at 8:59 AM, Wei-Chih Chen <wcchen.tw@gmail.com> wrote:
Dear Todd,

Thanks. I noticed that.
Originally, there is only sw1.
For VLAN, I add sw2 and connect NIC2 to it.
The management interface is on Network1 instead of Network2.


On Mon, Jul 4, 2011 at 1:10 AM, Todd Deshane <todd.deshane@xxxxxxx> wrote:
On Sun, Jul 3, 2011 at 4:58 AM, Wei-Chih Chen <wcchen.tw@gmail.com> wrote:
> Hello Everyone,
> I've setup several hosts with XCP 1.0 and manage it through XenCenter.
> Each host has two NICs (NIC1 and NIC2), connected to different physical
> switches (sw1 and sw2 respectively).
> After installation, Network1 and Network2 are automatically created for the
> two NICs.
> Now I am trying to setup VLAN.
> I create an "External Network" called NetworkVLAN, assigne a VLAN ID, and
> link it to NIC2.
> On XenCenter, the Link Status of Network1 and Network2 are shown connected,
> but that of NetworkVLAN is disconnected.
> Does this mean packets of VMs attached to NetworkVLAN can not go outside to
> sw2?
> (i.e. These packets can only travel among VMs attached to NetworkVLAN?)
> Is there something wrong?


Note that "XenServer management interfaces cannot be assigned to a
XenServer VLAN via a trunk port."

> Thanks.
> Regards,
> Wayne
> _______________________________________________
> Xen-users mailing list
> Xen-users@xxxxxxxxxxxxxxxxxxx
> http://lists.xensource.com/xen-users

Todd Deshane

Xen-users mailing list
