Re: [Xen-devel] Re: Linux Stubdom Problem



2011/9/15 Stefano Stabellini <stefano.stabellini@xxxxxxxxxxxxx>:
> On Wed, 14 Sep 2011, Jiageng Yu wrote:
>> Hi Stefano,
>>
>> Â Â ÂI just have a prototype of vram mapping and test it now. The
>> implementation of linux-stubdom kernel part is as follows.
>> xen_remap_domain_mfn_range2 function maps foreign dom's physical
>> address into linux kernel space. It is similar to
>> xen_remap_domain_mfn_range. But xen_remap_domain_mfn_range is used to
>> map foreign pages into linux user space.
>>
>> Â Â But the page info seems wrong after executing
>> xen_remap_domain_mfn_range2.
>>
>> Â Â struct page *page=pfn_to_page(vmalloc_to_pfn(info->fb));
>>
>> Â Â The page->_count = 0xc2c2c2c2. It is very strange.
>>
>> Â Â Did I do the right thing?
>>
>
> use page_address instead of pfn_to_page to find the struct page
>
>
>> Â Â Greeting.
>>
>> Jiageng Yu.
>>
>>
>> diff --git a/arch/x86/xen/mmu.c b/arch/x86/xen/mmu.c
>> index 204e3ba..72a7808 100644
>> --- a/arch/x86/xen/mmu.c
>> +++ b/arch/x86/xen/mmu.c
>> @@ -2693,6 +2693,73 @@ out:
>> Â}
>> ÂEXPORT_SYMBOL_GPL(xen_remap_domain_mfn_range);
>>
>> +int xen_remap_domain_mfn_range2(unsigned long addr,unsigned long gpfn,
>> + Â Â Â Â Â Â Â Âint nr, unsigned domid)
>> +{
>> + Â Âstruct remap_data rmd;
>> + Â Âstruct mmu_update mmu_update[REMAP_BATCH_SIZE];
>> + Â Âint level,i,batch,nr_page = nr;
>> + Â Âunsigned long range;
>> + Â Âint err = 0;
>> + Â Âunsigned long vaddr,base_addr = addr;
>> + Â Âpte_t pte,*ptep;
>> +
>> + Â Ârmd.mfn = gpfn;
>> + Â Ârmd.prot = __pgprot(_PAGE_PRESENT | _PAGE_RW | _PAGE_ACCESSED |
>> _PAGE_IOMAP);
>> +
>> + Â Âwhile(nr_page) {
>> + Â Â Â Âbatch = min(REMAP_BATCH_SIZE, nr);
>> + Â Â Â Ârange = (unsigned long)batch << PAGE_SHIFT;
>> +
>> + Â Â Â Ârmd.mmu_update = mmu_update;
>> +
>> + Â Â Â Âfor(i=0; i < batch; i++){
>> + Â Â Â Â Â Âpte = pte_mkspecial(pfn_pte(rmd.mfn++, rmd.prot));
>> + Â Â Â Â Â Âvaddr = base_addr + i*PAGE_SIZE;
>> + Â Â Â Â Â Âptep = lookup_address(vaddr, &level);
>
> you need to check if ptep is valid here and the level is PG_LEVEL_4K
>
>> + Â Â Â Â Â Ârmd.mmu_update->ptr = arbitrary_virt_to_machine(ptep).maddr |
>> + Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â ÂMMU_NORMAL_PT_UPDATE;
>
> you can use pte_mfn(*ptep) instead of arbitrary_virt_to_machine
>
>
>> + Â Â Â Â Â Ârmd.mmu_update->val = pte_val_ma(pte);
>> + Â Â Â Â Â Ârmd.mmu_update++;
>> + Â Â Â Â}
>> +
>> + Â Â Â Âerr = -EFAULT;
>> + Â Â Â Âif(HYPERVISOR_mmu_update(mmu_update, batch, NULL, domid) < 0)
>> + Â Â Â Â Â Âgoto out;
>> +
>> + Â Â Â Ânr_page -= batch;
>> + Â Â Â Âbase_addr += range;
>> + Â Â}
>> +
>> + Â Âerr = 0;
>> +
>> + Â Âbase_addr = addr;
>> + Â Âfor(i=0; i < nr; i++){
>> + Â Â Â Âvaddr = base_addr + i*PAGE_SIZE;
>> + Â Â Â Âset_phys_to_machine(vmalloc_to_pfn(vaddr),
>> + Â Â Â Â Â Â Â Âarbitrary_virt_to_machine(vaddr).maddr >> PAGE_SHIFT);
>> + Â Â}
>
> The second argument (mfn) to set_phys_to_machine is wrong:
> arbitrary_virt_to_machine ends up calling virt_to_machine if
> virt_addr_valid. You need to manually call pte_mfn:
>
> /* the ptep content has been updated by Xen so we can lookup the foreign
> Â* mfn from the pte now */
> pte = lookup_address(vaddr, &level);
> BUG_ON(pte == NULL);
> offset = vaddr & ~PAGE_MASK;
> mfn = XMADDR(((phys_addr_t)pte_mfn(*pte) << PAGE_SHIFT) + offset);
>
>
>> +
>> +out:
>> + Â Â flush_tlb_all();
>> + Â Â return err;
>> +}
>> +EXPORT_SYMBOL_GPL(xen_remap_domain_mfn_range2);
>
> the name should be changed to xen_remap_foreign_gpfn_range
>
>
>> Â#ifdef CONFIG_XEN_PVHVM
>> Âstatic void xen_hvm_exit_mmap(struct mm_struct *mm)
>> Â{
>> diff --git a/drivers/video/xen-fbfront.c b/drivers/video/xen-fbfront.c
>> index dc72563..82da2ee 100644
>> --- a/drivers/video/xen-fbfront.c
>> +++ b/drivers/video/xen-fbfront.c
>> @@ -25,8 +25,12 @@
>> Â#include <linux/module.h>
>> Â#include <linux/vmalloc.h>
>> Â#include <linux/mm.h>
>> +#include <linux/sched.h>
>> +#include <asm/pgtable.h>
>> +#include <asm/page.h>
>>
>> Â#include <asm/xen/hypervisor.h>
>> +#include <asm/xen/page.h>
>>
>> Â#include <xen/xen.h>
>> Â#include <xen/events.h>
>> @@ -34,6 +38,7 @@
>> Â#include <xen/interface/io/fbif.h>
>> Â#include <xen/interface/io/protocols.h>
>> Â#include <xen/xenbus.h>
>> +#include <xen/xen-ops.h>
>>
>> Âstruct xenfb_info {
>>    unsigned char      *fb;
>> @@ -62,6 +67,12 @@ module_param_array(video, int, NULL, 0);
>> ÂMODULE_PARM_DESC(video,
>> Â Â Â "Video memory size in MB, width, height in pixels (default
>> 2,800,600)");
>>
>> +static unsigned long foreign_vaddr = 0;
>> +module_param(foreign_vaddr, ulong, S_IRUGO);
>> +
>> +static unsigned long foreign_domid = 0;
>> +module_param(foreign_domid, ulong, S_IRUGO);
>> +
>> Âstatic void xenfb_make_preferred_console(void);
>> Âstatic int xenfb_remove(struct xenbus_device *);
>> Âstatic void xenfb_init_shared_page(struct xenfb_info *, struct fb_info *);
>> @@ -398,7 +408,17 @@ static int __devinit xenfb_probe(struct xenbus_device
>> *dev,
>> Â Â Â if (info->fb == NULL)
>> Â Â Â Â Â Â Â goto error_nomem;
>> Â Â Â memset(info->fb, 0, fb_size);
>> -
>> + Â Âif((foreign_vaddr != 0) && (foreign_domid != 0)){
>> + Â Â Â Âret = xen_remap_domain_mfn_range2((unsigned long)(info->fb),
>> + Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Âforeign_vaddr >> PAGE_SHIFT,
>> + Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Âfb_size >> PAGE_SHIFT, foreign_domid);
>
> you should rename foreign_vaddr to foreign_gpfn and pass the gpfn value
> that is the ram_addr (page shifted) passed to xen_ram_alloc in qemu.
>
>> + Â Â Â Âif(ret < 0){
>> + Â Â Â Â Â Âprintk("Can not remap vram of hvm guest.\n");
>> + Â Â Â Â Â Âgoto error;
>> + Â Â Â Â}
>> + Â Â}
>> Â Â Â info->nr_pages = (fb_size + PAGE_SIZE - 1) >> PAGE_SHIFT;
>>
>> Â Â Â info->mfns = vmalloc(sizeof(unsigned long) * info->nr_pages);
>> diff --git a/include/xen/xen-ops.h b/include/xen/xen-ops.h
>> index 4349e89..1554531 100644
>> --- a/include/xen/xen-ops.h
>> +++ b/include/xen/xen-ops.h
>> @@ -20,6 +20,10 @@ int xen_remap_domain_mfn_range(struct vm_area_struct *vma,
>> Â Â Â Â Â Â Â Â Â Â Â Â Â Â Âunsigned long mfn, int nr,
>> Â Â Â Â Â Â Â Â Â Â Â Â Â Â Âpgprot_t prot, unsigned domid);
>>
>> +int xen_remap_domain_mfn_range2(unsigned long addr,unsigned long mfn,
>> + Â Â Â Â Â Â Â Âint nr, unsigned domid);
>> Âextern unsigned long *xen_contiguous_bitmap;
>> Âint xen_create_contiguous_region(unsigned long vstart, unsigned int order,
>> Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â unsigned int address_bits);
>>
>

Hi Stefano,

   Good news! We have the basic Linux based stubdom now, as shown in
attached figures. It can run, but the keyboard and network drivers
still need to be tested.

   In my recent work, I found the pte_mkspecial() (in linux stubdom
kernel) returned invalid value when I tried to map some memory spaces
into linux based stubdom from hvm guest.

pte_mkspecial()
       ->pte_set_flags()
               ->native_pte_val()
               ->native_make_pte()

  According to my test, the root cause of the problem is native_xxx
functions. The patch is as follows. But I think hardcoding is not a
good way to handle the problem. Maybe you can give me some
suggestions.

  Best Regards!

Jiageng Yu.


diff --git a/arch/x86/xen/mmu.c b/arch/x86/xen/mmu.c
index 204e3ba..c995139 100644
--- a/arch/x86/xen/mmu.c
+++ b/arch/x86/xen/mmu.c
@@ -2639,12 +2640,23 @@ static int remap_area_mfn_pte_fn(pte_t *ptep,
pgtable_t token,
                                 unsigned long addr, void *data)
 {
        struct remap_data *rmd = data;
-       pte_t pte = pte_mkspecial(pfn_pte(rmd->mfn++, rmd->prot));
+    if(((rmd->mfn & 0xfffffff0) == 0xc0) ||
+            ((rmd->mfn & 0xfffffff0) == 0x90) ||
+                ((rmd->mfn & 0xfffffff0) == 0x00) ||
+                    ((rmd->mfn & 0xfffffff0) == 0x70) ||
+                        ((rmd->mfn & 0xfffffff0) == 0x10)){
+           pte_t pte = pfn_pte(rmd->mfn++, rmd->prot);
+           rmd->mmu_update->val = pte_val(pte);
+    }else{
+           pte_t pte = pte_mkspecial(pfn_pte(rmd->mfn++, rmd->prot));
+           rmd->mmu_update->val = pte_val_ma(pte);
+    }

        rmd->mmu_update->ptr = arbitrary_virt_to_machine(ptep).maddr;
-       rmd->mmu_update->val = pte_val_ma(pte);
        rmd->mmu_update++;
-
        return 0;
 }

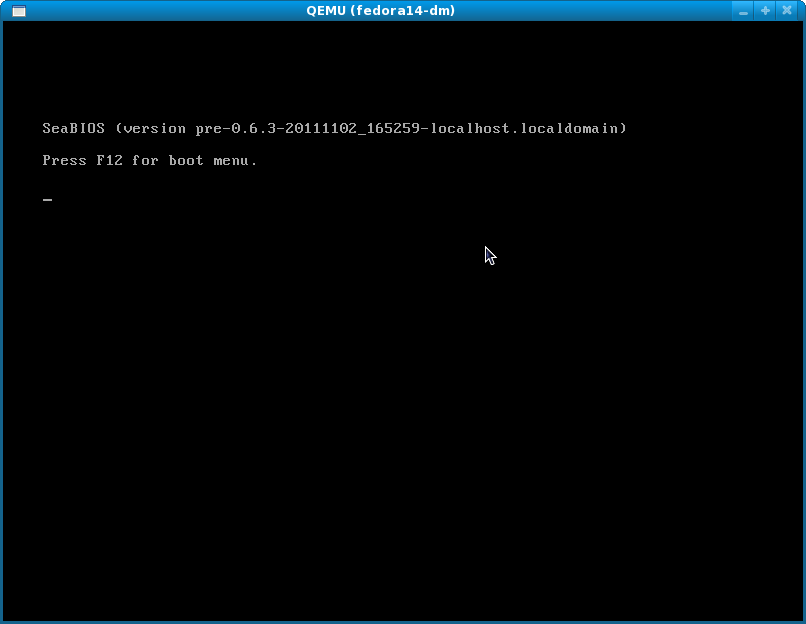

Attachment: Screenshot-QEMU (fedora14-dm)-1.png
Description: PNG image

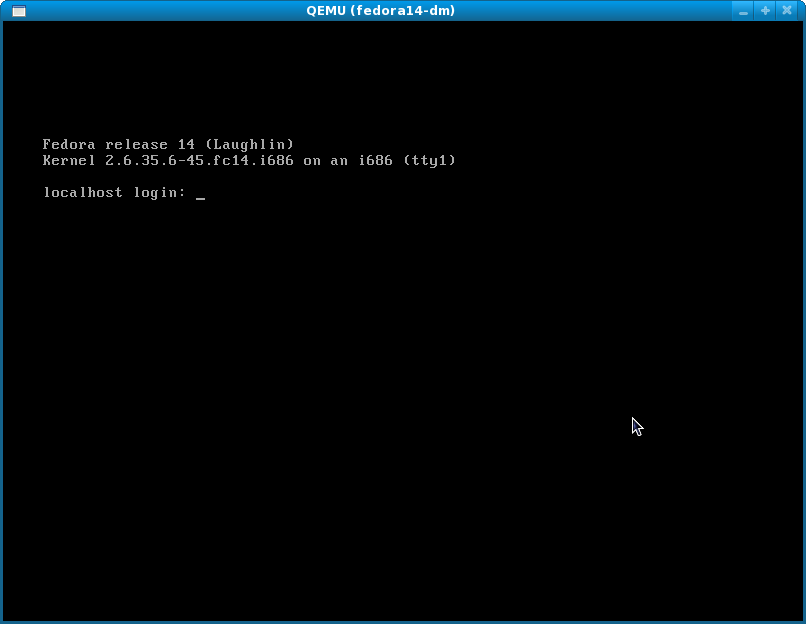

Attachment: Screenshot-QEMU (fedora14-dm)-2.png
Description: PNG image

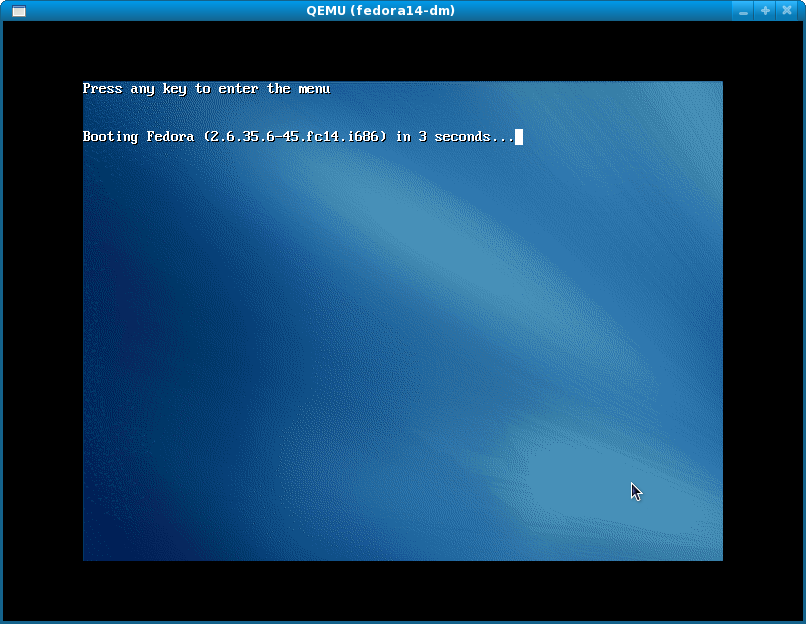

Attachment: Screenshot-QEMU (fedora14-dm)-3.png
Description: PNG image

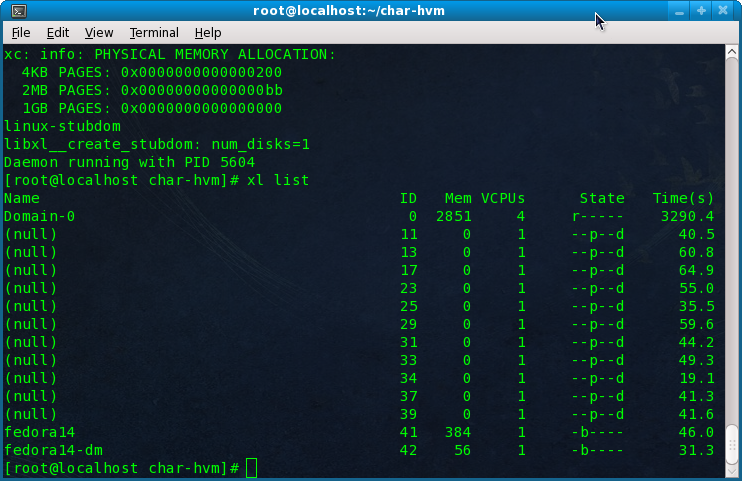

Attachment: Screenshot-root@localhost_~-char-hvm.png
Description: PNG image
